ASTM B466 /B467 C70600 Temper (O61, H55, H80) Copper Nickel 90/10 Cu-Ni 90/10 Seamless steel Pipe for Water Service
Basic Info.
Product Description
Copper nickel pipe manufacturers produce the pipes made up of copper and nickel in various component types. There are different compositions and material grades within the cupronickel range and the cupro nickel pipe manufacturer india produce all different types of these pipes. The different grades of cupronickel can be C70600, C71500, 90/10 and so on. These variations in the copper nickel pipes tubes are due to the different composition ratio of copper and nickel in the material. The cuni pipe can produce excellent corrosion resistance and long lasting lifespan. The application of these pipes are seen mainly in sea water and marine applications.
The astm b466 Pipe comes in sizes ranging fro ¼ inches to 12 inches. There are different pressure capacities to these pipes ranging from schedule 10 through schedule 160. The copper nickel pipe suppliers also produce these pipes in different lengths ranging up to 13m. the production can be different such as rolled, cold drawn, hot finished, stress relieved, annealed, hardened or tempered. The different specifications such as the din 86019 Pipe are used in different applications. The copper nickel tube can also be made as plain ended or bevel ended. The dimensions vary according to the standards and the outer diameters can range from 3mm to 114.3mm. The cunifer pipe is also produced as seamless, hot rolled, cold drawn, welded or electric resistance welded. The industries such as defense, ship building, refineries and power plants use the cuni tube for better strength, corrosion resistance and lifespan. The copper nickel tube suppliers also supply for evaporators, heat exchangers, chillers, power plants and other high corrosive applications.
234 UNS 7060X Copper Nickel Tubing distributor in China, DIN 86019 ASTM B111 C70600 Thin and heavy wall welded tubing, finned and copper nickel tube heat exchanger manufacturer
Table of contents
- Copper Nickel Pipe Specifications Types of Copper Nickel Pipes Tubes
- UNS C70600 Pipe Equivalent Copper Nickel Tubing Sizes
- 70/30 Copper Nickel Pipe/ Tube Copper Nickel 90/10 Pipe and Tube
- ASTM B466 UNS C70600 copper nickel seamless pipe Copper Nickel Tube Pressure Rating
- DIN 86019 Copper Nickel Pipe Dimensions Copper Nickel Pipe Wall Thickness Chart
- Copper Nickel Pipe Price List ASME SB111 C70600 Copper Nickel 90/10 Chemical Composition
- Copper Nickel Pipe Weight Per Foot Copper Nickel Tubing Melting Point
- SB 111 C71500 Composition Copper Nickel Heat Exchanger Tubes
- Copper Nickel Condenser Tubes Supply conditions of cupro nickel tube manufacturers
- Class 200 copper nickel pipe dimensions Copper nickel pipe scheule chart
Copper Nickel Pipe Specifications
Technical Specification
- Seamless and Welded copper nickel pipe suppliers
- EEMUA 144 – 16 & 20 Bar
- US Standard – Schedule 5S, 10S, 40S, 80S
- US Navy Class – Class 20, 700, 50
- Grade 90/10 and 70/30
- Common Standard of Copper Nickel Pipe manufacturers : ASTM B111/ GB/T8890/ JIS H3300/ BS EN12451 and so on.
- Material: BFe10-1-1 / CuNi9010 / C7060X / C70600 /CuNi10Fe1Mn / Cu90Ni10 and BFe30-1-1 / C71500 / CuNi7030 / CuNi30Mn1Fe / Cu70Ni30 or other cuni alloy
| ASTM B469 |
Seamless Copper Alloy Tubes for Pressure Applications
|
| ASTM B466 |
Seamless Copper Nickel Pipe suppliers
|
| ASTM B552 |
Seamless & Welded Cupro Nickel Tube suppliers for Water Desalting
|
| ASTM B543 |
Welded Copper & Copper Alloy Heat Exchanger Tube
|
| ASTM B608 |
Welded Copper Nickel Tube/ Pipe
|
| ASTM B467 |
Welded Cupro Nickel Pipe manufacturer India
|
| ASTM B111 |
Copper & Copper Alloy Seamless Condenser Tubes & Ferrule Stock
|
| ASTM B359 |
Copper & Copper Alloy Seamless Condenser & Heat Exchanger Tubes with Integral Fins
|
Types of Copper Nickel Pipes Tubes
Copper Nickel Welded Pipes
FOB Price: US $ 4 – US $6 / Kg
Malaysia FOB Price: 17-10 Ringgit / Kg
Australia FOB Price: 4-6 Australian dollar / Kg
Singapore FOB Price: : 4-6 Singapore dollar / Kg
UAE FOB Price: 15-18 UAE Dirham/ Kg
Copper nickel seamless pipes (CU-NI/90-10)
FOB Price: US $ 100 – US $110 / meter
Malaysia FOB Price: 420-440 Ringgit / meter
Australia FOB Price: 135-145 Australian dollar / meter
Singapore FOB Price: : 140-145 Singapore dollar / meter
UAE FOB Price: 380-400 UAE Dirham/ meter
DIN 86019 Copper Nickel Pipe (OD 88.9 / CU-NI/90-10)
FOB Price: US $ 70 – US $90 / meter
Malaysia FOB Price: 280-300 Ringgit / meter
Australia FOB Price: 90-95 Australian dollar / meter
Singapore FOB Price: : 91-96 Singapore dollar / meter
UAE FOB Price: 250-270 UAE Dirham/ meter
Cupro Nickel Pipe (ASTM B466 UNS C70600)
FOB Price: US $ 14 – US $16 / kg
Malaysia FOB Price: 60-64 Ringgit / kg
Australia FOB Price: 18-21 Australian dollar / kg
Singapore FOB Price: : 19-22 Singapore dollar / kg
UAE FOB Price: 50-60 UAE Dirham/ kg
Cupro nickel tube (90/10 UNS C70600 SMLS, 88.9 MM)
FOB Price: US $ 6 – US $8 / kg
Malaysia FOB Price: 20-26 Ringgit / kg
Australia FOB Price: 8-10 Australian dollar / kg
Singapore FOB Price: : 8-10 Singapore dollar / kg
UAE FOB Price: 22-25 UAE Dirham/ kg
ASTM B466 Pipe (CUNI 90/10 UNS C70600)
FOB Price: US $ 10 – US $12 / kg
Malaysia FOB Price: 45-50 Ringgit / kg
Australia FOB Price: 12-18 Australian dollar / kg
Singapore FOB Price: : 14-16 Singapore dollar / kg
UAE FOB Price: 40-45 UAE Dirham/ kg
SB111 C70600 copper nickel tube heat exchanger
FOB Price: US $ 5 – US $8 / kg
Malaysia FOB Price: 19-26 Ringgit / kg
Australia FOB Price: 7-10 Australian dollar / kg
Singapore FOB Price: : 7-10 Singapore dollar / kg
UAE FOB Price: 21-25 UAE Dirham/ kg
Copper Nickel Tube (70 / 30)
FOB Price: US $ 8 – US $10 / kg
Malaysia FOB Price: 21-26 Ringgit / kg
Australia FOB Price: 9-11 Australian dollar / kg
Singapore FOB Price: : 9-11 Singapore dollar / kg
UAE FOB Price: 23-26 UAE Dirham/ kg
EEMUA 234 UNS 7060X Cunifer Pipe
FOB Price: US $ 13 – US $16 / kg
Malaysia FOB Price: 55-64 Ringgit / kg
Australia FOB Price: 16-21 Australian dollar / kg
Singapore FOB Price: : 16-21 Singapore dollar / kg
UAE FOB Price: 45-55 UAE Dirham/ kg
90/10 CuNi Tube
FOB Price: US $ 10 – US $12 / kg
Malaysia FOB Price: 22-27 Ringgit / kg
Australia FOB Price: 10-12 Australian dollar / kg
Singapore FOB Price: : 10-12 Singapore dollar / kg
UAE FOB Price: 25-27 UAE Dirham/ kg
70/30 CuNi Pipe
FOB Price: US $ 8- US $10 / kg
Malaysia FOB Price: 40-45 Ringgit / kg
Australia FOB Price: 10-12 Australian dollar / kg
Singapore FOB Price: : 10-11 Singapore dollar / kg
UAE FOB Price: 35-40 UAE Dirham/ kg
Copper nickel finned tubing (70/30 Cuni)
FOB Price: US $ 9 – US $12 / kg
Malaysia FOB Price: 21-27 Ringgit / kg
Australia FOB Price: 9-12 Australian dollar / kg
Singapore FOB Price: : 9-12 Singapore dollar / kg
UAE FOB Price: 24-27 UAE Dirham/ kg
90/10 Copper Nickel Pipe (Seamless ASTM B466)
FOB Price: US $ 15 – US $20 / kg
Malaysia FOB Price: 55-60 Ringgit / kg
Australia FOB Price: 22-24 Australian dollar / kg
Singapore FOB Price: : 24-26 Singapore dollar / kg
UAE FOB Price: 50-55 UAE Dirham/ kg
SB111 C71500 70/30 Cupro Nickel Tube (3/8 -9.52MM OD)
FOB Price: US $ 25 – US $30 / Mtr
Malaysia FOB Price: 120-125 Ringgit / Mtr
Australia FOB Price: 35-40 Australian dollar / Mtr
Singapore FOB Price: : 35-40 Singapore dollar / Mtr
UAE FOB Price: 108-110 UAE Dirham/ Mtr
UNS C70600 90/10 Cuni Tubing
FOB Price: US $ 28 – US $30 / Mtr
Malaysia FOB Price: 122-125 Ringgit / Mtr
Australia FOB Price: 37-40 Australian dollar / Mtr
Singapore FOB Price: : 37-40 Singapore dollar / Mtr
UAE FOB Price: 110-111 UAE Dirham/ Mtr
UNS C70600 Pipe Equivalent
| GRADE | USA | U.K | GERMANY | JAPAN |
|---|---|---|---|---|
| China BG | ASTM | BS | DIN | JIS H |
| BFe10-1-1 | C70600 | CN102 | CuNi10Fe1Mn | C7060 |
| BFe30-1-1 | C71500 | CN107 | CuNi30Mn1Fe | C7150 |
Cunifer DIN 17664 Tube Equivalent Grades
| ASTM B111 | C70600 |
| ASTM B466 | C70600 |
| EEMUA 144 | 7060X |
| KS D5301
JIS H3300 |
C7060T |
| BS2871 {PART2} | CN102 |
| AS1752 | C70600 |
| DIN17664 | CuNi10Fe 1Mn |
| DIN 86019 WL2.1972 | CuNi10Fe 1.6Mn |
| EN12449 | CW352H |
| MIL-T-16420K | 706 |
Copper Nickel Tubing Sizes
¼” Extra Heavy (SCH 80) thru 4″
½” Class 200 Mil-T-16420 K thru 10″

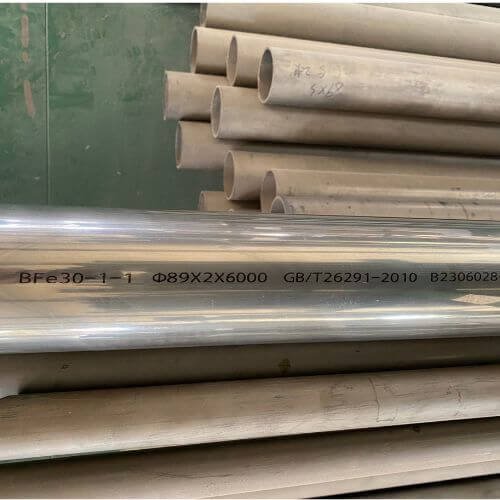

70/30 Copper Nickel Pipe/ Tube
| MANUFACTURER & SUPPLIER OF | SPECIFICATION |
|---|---|
| Tube, Condenser, Copper Nickel 70/30 | ASME SB111, ASTM B552, B111, MILITARY MIL-T-15005, SAE J463, J461 |
| Tube, Finned, Copper Nickel 70/30 | ASME SB359, ASTM B359, MILITARY MIL-T-22214 |
| Tube, Seamless, Copper Nickel 70/30 | ASME SB466, ASTM B466, MILITARY MIL-T-16420 |
| Tube, U-Bend, Copper Nickel 70/30 | ASME SB395, ASTM B395 |
| Tube, Welded, Copper Nickel 70/30 | ASME SB543, ASTM B543 |
Copper Nickel 90/10 Pipe and Tube
- ASTM Designation UNS C70600: ASTM B111
- ASME Designation UNS C70600: ASME SB111
| MANUFACTURER & SUPPLIER OF | SPECIFICATION |
|---|---|
| 90/10 Copper Nickel Pipe/ Tube, Seamless | ASTM B466, ASME SB 466 |
| 90/10 Cuni Tubing/ Pipe, Welded | ASTM B608, B467, ASME SB 467 |
| 90/10 Copper Nickel Tube, Condenser | ASME SB111, ASTM B552, B111, SAE J463, J461, MILITARY MIL-T-15005 |

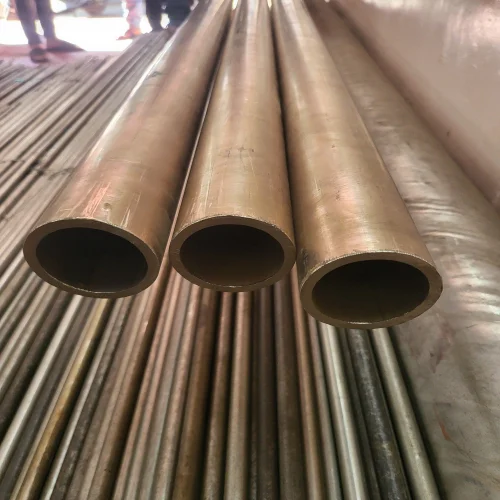

ASTM B466 UNS C70600 copper nickel seamless pipe
| ASTM B466 UNS C70600 TUBES SIZE | 15 NB to 150 NB IN |
|---|---|
| CUPRO NICKEL 90/10 TUBING WALL THICKNESS | .035″ -.095′, (special wall thicknesses available) |
| SPECIALIZED IN | Large Diameter Size |
| UNS C70600 TUBING TYPE |
|
| TEMPER | HARD TEMPER OR SOFT |
| HARDNESS | 1/8 hard, 1/6 hard,3/8 hard, 1/2hard, 1/4 hard, full hard, soft, etc |
| SURFACE | mill, bright, oiled, polished, hair line,sand blast, brush, mirror, or as custom |
| APPLICATION & USES |
|
Copper Nickel Tube Pressure Rating
| 10 BAR | |||||
|---|---|---|---|---|---|
| PIPE OUTSIDE DIAMETER | WALL THK | WEIGHT | PRESSURE | ||
| NOMINAL | ACTUAL | ACTUAL | (THEORETICAL) | RATING | |
| INCH | DN | MM | MM | KG/M | |
| 0.125 | 10 | 1.0 | 0.26 | 10 | |
| 0.25 | 12 | 1.0 | 0.31 | 10 | |
| 0.38 | 10 | 16 | 1.0 | 0.42 | 14 |
| 0.5 | 15 | 20 | 1.0 | 0.53 | 14 |
| 0.75 | 20 | 25 | 1.5 | 0.99 | 14 |
| 1 | 25 | 30 | 1.5 | 1.20 | 10 |
| 1.25 | 32 | 38 | 1.5 | 1.54 | 10 |
| 1.5 | 40 | 44.5 | 1.5 | 1.81 | 10 |
| 2 | 50 | 57 | 1.5 | 2.34 | 10 |
| 2.5 | 65 | 76.1 | 2.0 | 4.16 | 14 |
| 3 | 80 | 88.9 | 2.0 | 4.88 | 10 |
| 4 | 100 | 108 | 2.5 | 7.41 | 14 |
| 5 | 125 | 133 | 2.5 | 9.16 | 10 |
| 6 | 150 | 159 | 2.5 | 10.99 | 10 |
| 7 | 175 | 193.7 | 2.5 | 13.43 | 10 |
| 8 | 200 | 219.1 | 3.0 | 18.21 | 10 |
| 10 | 250 | 267 | 3.0 | 22.24 | 10 |
| 12 | 300 | 323.9 | 4.0 | 35.94 | 10 |
| 14 | 350 | 368 | 4.0 | 40.9 | 10 |
| 16 | 400 | 4191 | 4.0 | 46.62 | 10 |
| 18 | 450 | 457.2 | 4.0 | 50.91 | 10 |
| 20 | 500 | 508 | 4.5 | 63.63 | 10 |
| 24 | 600 | 610 | 5.0 | 84.96 | 10 |
| 28 | 700 | 711 | 6.0 | 118.80 | 10 |
| 32 | 800 | 813 | 6.0 | 135.99 | 10 |
| 36 | 900 | 914 | 8.0 | 203.57 | 10 |

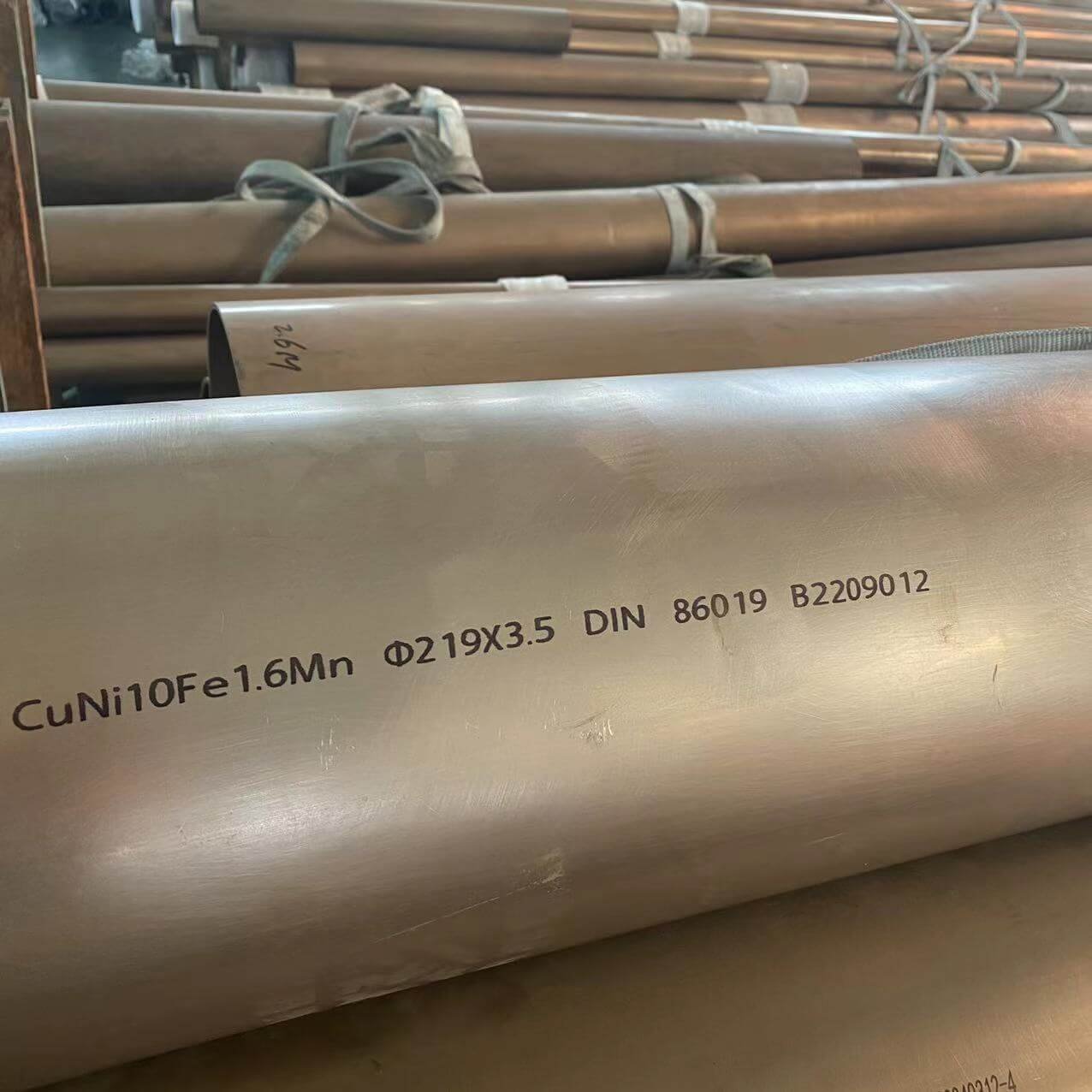

DIN 86019 Copper Nickel Pipe Dimensions
| OUTSIDE DIAMETER OF PIPE | 10 BAR | 14 BAR | ||||
|---|---|---|---|---|---|---|
| WALL THICKNESS (WT) | THEORETICAL WEIGHT CHART | WALL THICKNESS (WT) | THEORETICAL WEIGHT CHART | |||
| nominal | actual | actual | actual | |||
| inch | ND | mm | mm | Kg/m | mm | Kg/m |
| 0.125 | 10 | 1 | 0.26 | 1 | 0.26 | |
| 0.25 | 12 | 1 | 0.31 | 1 | 0.31 | |
| 0.38 | 10 | 16 | 1 | 0.42 | 1 | 0.42 |
| 0.5 | 15 | 20 | 1 | 0.53 | 1 | 0.53 |
| 0.75 | 20 | 25 | 1.5 | 0.99 | 1.5 | 0.99 |
| 1 | 25 | 30 | 1.5 | 1.2 | 1.5 | 1.2 |
| 1.25 | 32 | 38 | 1.5 | 1.54 | 1.5 | 1.54 |
| 1.5 | 40 | 44.5 | 1.5 | 1.81 | 1.5 | 1.81 |
| 2 | 50 | 57 | 1.5 | 2.34 | 1.5 | 2.34 |
| 2.5 | 65 | 76.1 | 2 | 4.16 | 2 | 4.16 |
| 3 | 80 | 88.9 | 2 | 4.88 | 2.5 | 6.07 |
| 4 | 100 | 108 | 2.5 | 7.41 | 2.5 | 7.41 |
| 5 | 125 | 133 | 2.5 | 9.16 | 3 | 10.95 |
| 6 | 150 | 159 | 2.5 | 10.99 | 3 | 13.14 |
| 7 | 175 | 193.7 | 2.5 | 13.43 | 3.5 | 18.7 |
| 8 | 200 | 219.1 | 3 | 18.21 | 3.5 | 21.19 |
| 10 | 250 | 267 | 3 | 22.24 | 4 | 29.55 |
| 12 | 300 | 323.9 | 4 | 35.94 | 5 | 44.78 |
| 14 | 350 | 368 | 4 | 40.89 | 5.5 | 56 |
| 16 | 400 | 419.1 | 4 | 46.62 | 6 | 69.6 |
| 18 | 450 | 457.2 | 4 | 50.91 | 6 | 76.03 |
| 20 | 500 | 508 | 4.5 | 63.63 | 6.5 | 91.55 |
| 24 | 600 | 610 | 5 | 84.96 | 8 | 135.26 |
| 28 | 700 | 711 | 6 | 118.8 | 9 | 177.45 |
| 32 | 800 | 813 | 6 | 135.99 | 10 | 225.53 |
| 36 | 900 | 914 | 8 | 203.57 | 11 | 278.98 |
Copper Nickel Pipe Wall Thickness Chart
A leading copper nickel tubing distributors and suppliers in China
| ASTM B466 UNS C70600 TUBES (O.D.) |
CUPRO NICKEL 90/10 TUBE GAUGE | |||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BWG 00 | BWG 0 | BWG 1 | BWG 2 | BWG 3 | BWG 4 | BWG 5 | BWG 6 | BWG 7 | BWG 8 | BWG 9 | BWG 10 | BWG 11 | BWG 12 | BWG 13 | BWG 14 | BWG 15 | BWG 16 | BWG 17 | BWG 18 | BWG 19 | BWG 20 | BWG 21 | BWG 22 | BWG 23 | BWG 24 | |
| COPPER NICKEL 90/10 TUBING WALL THICKNESS (INCHES) | ||||||||||||||||||||||||||
| 0.380 | 0.340 | 0.300 | 0.284 | 0.259 | 0.238 | 0.220 | 0.203 | 0.180 | 0.165 | 0.148 | 0.134 | 0.120 | 0.109 | 0.095 | 0.083 | 0.072 | 0.065 | 0.058 | 0.049 | 0.042 | 0.035 | 0.032 | 0.028 | 0.025 | 0.022 | |
| UNS C70600 TUBES INSIDE DIA | ||||||||||||||||||||||||||
| 1/4″ | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 0.010 | 0.032 | 0.060 | 0.084 | 0.106 | 0.120 | 0.134 | 0.152 | 0.166 | 0.180 | 0.186 | 0.194 | 0.200 | 0.206 |
| 3/8″ | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | 0.015 | 0.045 | 0.079 | 0.107 | 0.135 | 0.157 | 0.185 | 0.209 | 0.231 | 0.245 | 0.259 | 0.277 | 0.291 | 0.305 | 0.311 | 0.319 | 0.325 | 0.331 |
| 1/2″ | N/A | N/A | N/A | N/A | N/A | 0.024 | 0.060 | 0.094 | 0.140 | 0.170 | 0.204 | 0.232 | 0.260 | 0.282 | 0.310 | 0.334 | 0.356 | 0.370 | 0.384 | 0.402 | 0.416 | 0.430 | 0.436 | 0.444 | 0.450 | 0.456 |
| 5/8″ | N/A | N/A | 0.025 | 0.057 | 0.107 | 0.149 | 0.185 | 0.219 | 0.265 | 0.295 | 0.329 | 0.357 | 0.385 | 0.407 | 0.435 | 0.459 | 0.481 | 0.495 | 0.509 | 0.527 | 0.541 | 0.555 | 0.561 | 0.569 | 0.575 | 0.581 |
| 3/4″ | N/A | 0.070 | 0.150 | 0.182 | 0.232 | 0.274 | 0.310 | 0.344 | 0.390 | 0.420 | 0.454 | 0.482 | 0.510 | 0.532 | 0.560 | 0.584 | 0.606 | 0.620 | 0.634 | 0.652 | 0.666 | 0.680 | 0.686 | 0.694 | 0.700 | 0.706 |
| 7/8″ | 0.115 | 0.195 | 0.275 | 0.307 | 0.357 | 0.399 | 0.435 | 0.469 | 0.515 | 0.545 | 0.579 | 0.607 | 0.635 | 0.657 | 0.685 | 0.709 | 0.731 | 0.745 | 0.759 | 0.777 | 0.791 | 0.805 | 0.811 | 0.819 | 0.825 | 0.831 |
| 1″ | 0.240 | 0.320 | 0.400 | 0.432 | 0.482 | 0.524 | 0.560 | 0.594 | 0.640 | 0.670 | 0.704 | 0.732 | 0.760 | 0.782 | 0.810 | 0.834 | 0.856 | 0.870 | 0.884 | 0.902 | 0.916 | 0.930 | 0.936 | 0.944 | 0.950 | 0.956 |
| 1 1/8″ | 0.365 | 0.445 | 0.525 | 0.557 | 0.607 | 0.649 | 0.685 | 0.719 | 0.765 | 0.795 | 0.829 | 0.857 | 0.885 | 0.907 | 0.935 | 0.959 | 0.981 | 0.995 | 1.009 | 1.027 | 1.041 | 1.055 | 1.061 | 1.069 | 1.075 | 1.081 |
| 1 1/4″ | 0.490 | 0.570 | 0.650 | 0.682 | 0.732 | 0.774 | 0.810 | 0.844 | 0.890 | 0.920 | 0.954 | 0.982 | 1.010 | 1.032 | 1.060 | 1.084 | 1.106 | 1.120 | 1.134 | 1.152 | 1.166 | 1.180 | 1.186 | 1.194 | 1.200 | 1.206 |
| 1 1/2″ | 0.740 | 0.820 | 0.900 | 0.932 | 0.982 | 1.024 | 1.060 | 1.094 | 1.140 | 1.170 | 1.204 | 1.232 | 1.260 | 1.282 | 1.310 | 1.334 | 1.356 | 1.370 | 1.384 | 1.402 | 1.416 | 1.430 | 1.436 | 1.444 | 1.450 | 1.456 |
| 1 3/4″ | 0.990 | 1.070 | 1.150 | 1.182 | 1.232 | 1.274 | 1.310 | 1.344 | 1.390 | 1.420 | 1.454 | 1.482 | 1.510 | 1.532 | 1.560 | 1.584 | 1.606 | 1.620 | 1.634 | 1.652 | 1.666 | 1.680 | 1.686 | 1.694 | 1.700 | 1.706 |
| 2″ | 1.240 | 1.320 | 1.400 | 1.432 | 1.482 | 1.524 | 1.560 | 1.594 | 1.640 | 1.670 | 1.704 | 1.732 | 1.760 | 1.782 | 1.810 | 1.834 | 1.856 | 1.870 | 1.884 | 1.902 | 1.916 | 1.930 | 1.936 | 1.944 | 1.950 | 1.956 |
| 2 1/4″ | 1.490 | 1.570 | 1.650 | 1.682 | 1.732 | 1.774 | 1.810 | 1.844 | 1.890 | 1.920 | 1.954 | 1.982 | 2.010 | 2.032 | 2.060 | 2.084 | 2.106 | 2.120 | 2.134 | 2.152 | 2.166 | 2.180 | 2.186 | 2.194 | 2.200 | 2.206 |
| 2 1/2″ | 1.740 | 1.820 | 1.900 | 1.932 | 1.982 | 2.024 | 2.060 | 2.094 | 2.140 | 2.170 | 2.204 | 2.232 | 2.260 | 2.282 | 2.310 | 2.334 | 2.356 | 2.370 | 2.384 | 2.402 | 2.416 | 2.430 | 2.436 | 2.444 | 2.450 | 2.456 |
| 2 3/4″ | 1.990 | 2.070 | 2.150 | 2.182 | 2.232 | 2.274 | 2.310 | 2.344 | 2.390 | 2.420 | 2.454 | 2.482 | 2.510 | 2.532 | 2.560 | 2.584 | 2.606 | 2.620 | 2.634 | 2.652 | 2.666 | 2.680 | 2.686 | 2.694 | 2.700 | 2.706 |
| 3″ | 2.240 | 2.320 | 2.400 | 2.432 | 2.482 | 2.524 | 2.560 | 2.594 | 2.640 | 2.670 | 2.704 | 2.732 | 2.760 | 2.782 | 2.810 | 2.834 | 2.856 | 2.870 | 2.884 | 2.902 | 2.916 | 2.930 | 2.936 | 2.944 | 2.950 | 2.956 |
| 3 1/4″ | 2.490 | 2.570 | 2.650 | 2.682 | 2.732 | 2.774 | 2.810 | 2.844 | 2.890 | 2.920 | 2.954 | 2.982 | 3.010 | 3.032 | 3.060 | 3.084 | 3.106 | 3.120 | 3.134 | 3.152 | 3.166 | 3.180 | 3.186 | 3.194 | 3.200 | 3.206 |
| 3 1/2″ | 2.740 | 2.820 | 2.900 | 2.932 | 2.982 | 3.024 | 3.060 | 3.094 | 3.140 | 3.170 | 3.204 | 3.232 | 3.260 | 3.282 | 3.310 | 3.334 | 3.356 | 3.370 | 3.384 | 3.402 | 3.416 | 3.430 | 3.436 | 3.444 | 3.450 | 3.456 |
| 3 3/4″ | 2.990 | 3.070 | 3.150 | 3.182 | 3.232 | 3.274 | 3.310 | 3.344 | 3.390 | 3.420 | 3.454 | 3.482 | 3.510 | 3.532 | 3.560 | 3.584 | 3.606 | 3.620 | 3.634 | 3.652 | 3.666 | 3.680 | 3.686 | 3.694 | 3.700 | 3.706 |
| 4″ | 3.240 | 3.320 | 3.400 | 3.432 | 3.482 | 3.524 | 3.560 | 3.594 | 3.640 | 3.670 | 3.704 | 3.732 | 3.760 | 3.782 | 3.810 | 3.834 | 3.856 | 3.870 | 3.884 | 3.902 | 3.916 | 3.930 | 3.936 | 3.944 | 3.950 | 3.956 |
| 4 1/4″ | 3.490 | 3.570 | 3.650 | 3.682 | 3.732 | 3.774 | 3.810 | 3.844 | 3.890 | 3.920 | 3.954 | 3.982 | 4.010 | 4.032 | 4.060 | 4.084 | 4.106 | 4.120 | 4.134 | 4.152 | 4.166 | 4.180 | 4.186 | 4.194 | 4.200 | 4.206 |
| 4 1/2″ | 3.740 | 3.820 | 3.900 | 3.932 | 3.982 | 4.024 | 4.060 | 4.094 | 4.140 | 4.170 | 4.204 | 4.232 | 4.260 | 4.282 | 4.310 | 4.334 | 4.356 | 4.370 | 4.384 | 4.402 | 4.416 | 4.430 | 4.436 | 4.444 | 4.450 | 4.456 |
| 4 3/4″ | 3.990 | 4.070 | 4.150 | 4.182 | 4.232 | 4.274 | 4.310 | 4.344 | 4.390 | 4.420 | 4.454 | 4.482 | 4.510 | 4.532 | 4.560 | 4.584 | 4.606 | 4.620 | 4.634 | 4.652 | 4.666 | 4.680 | 4.686 | 4.694 | 4.700 | 4.706 |
| 5″ | 4.240 | 4.320 | 4.400 | 4.432 | 4.482 | 4.524 | 4.560 | 4.594 | 4.640 | 4.670 | 4.704 | 4.732 | 4.760 | 4.782 | 4.810 | 4.834 | 4.856 | 4.870 | 4.884 | 4.902 | 4.916 | 4.930 | 4.936 | 4.944 | 4.950 | 4.956 |
| 5 1/4″ | 4.490 | 4.570 | 4.650 | 4.682 | 4.732 | 4.774 | 4.810 | 4.844 | 4.890 | 4.920 | 4.954 | 4.982 | 5.010 | 5.032 | 5.060 | 5.084 | 5.106 | 5.120 | 5.134 | 5.152 | 5.166 | 5.180 | 5.186 | 5.194 | 5.200 | 5.206 |
ASME SB111 C70600 Copper Nickel 90/10 Chemical Composition
| ELEMENTS | CONTENT (%) |
|---|---|
| Nickel, Ni | 9.0-11.0 |
| Iron, Fe | 1.0-1.8 |
| Zinc, Zn | 1.0 |
| Manganese, Mn | 1.0 |
| Lead, Pb | 0.05 |
| Copper, Cu | Remainder |
Copper Nickel Pipe Weight Per Foot
| OUTSIDE DIAMETER OF PIPE | EEMUA 144 | |||||
|---|---|---|---|---|---|---|
| 16 BAR | 20 BAR | |||||
| ØD | WALL | THEORETICAL | WALL | THEORETICAL | ||
| THICKNESS | WEIGHT | THICKNESS | WEIGHT | |||
| nominal | actual | actual | actual | |||
| inch | ND | mm | mm | Kg/m | mm | Kg/m |
| 0.125 | 10 | 1 | 0.26 | 1 | 0.26 | |
| 0.25 | 12 | 1 | 0.31 | 1 | 0.31 | |
| 0.38 | 10 | 16 | 2 | 0.79 | 2 | 0.79 |
| 0.5 | 15 | 20 | 2 | 1.01 | 2 | 1.01 |
| 0.75 | 20 | 25 | 2 | 1.3 | 2 | 1.3 |
| 1 | 25 | 30 | 2.5 | 1.93 | 2.5 | 1.93 |
| 1.25 | 32 | 38 | 2.5 | 2.5 | 2.5 | 2.5 |
| 1.5 | 40 | 44.5 | 2.5 | 2.95 | 2.5 | 2.95 |
| 2 | 50 | 57 | 2.5 | 3.83 | 2.5 | 3.83 |
| 2.5 | 65 | 76.1 | 2.5 | 5.17 | 2.5 | 5.17 |
| 3 | 80 | 88.9 | 2.5 | 6.07 | 2.5 | 6.07 |
| 4 | 100 | 108 | 3 | 8.85 | 3 | 8.85 |
| 5 | 125 | 133 | 3 | 10.95 | 3 | 10.95 |
| 6 | 150 | 159 | 3 | 13.14 | 3.5 | 15.29 |
| 7 | 175 | 193.7 | 3 | 16.07 | 3.5 | 18.7 |
| 8 | 200 | 219.1 | 4 | 24.17 | 4.5 | 27.12 |
| 10 | 250 | 267 | 4.5 | 33.18 | 5.5 | 40.39 |
| 12 | 300 | 323.9 | 5.5 | 49.18 | 7 | 62.3 |
| 14 | 350 | 368 | 6.5 | 65.99 | 8 | 80.89 |
| 16 | 400 | 419.1 | 7 | 81 | 9 | 103.64 |
| 18 | 450 | 457.2 | 8 | 100.93 | 9.5 | 119.45 |
| 20 | 500 | 508 | 8.5 | 119.24 | 11 | 153.54 |
| 24 | 600 | 610 | 10.5 | 176.79 | 13 | 217.97 |
| 28 | 700 | 711 | 12 | 235.58 | 15 | 293.22 |
| 32 | 800 | 813 | 13.5 | 303.14 | 17 | 380.06 |
| 36 | 900 | 914 | 15.5 | 391.14 | 19 | 477.6 |
Copper Nickel Tubing Melting Point
| PROPERTY | MINIMUM VALUE (S.I.) | MAXIMUM VALUE (S.I.) | UNITS (S.I.) | MINIMUM VALUE (IMP.) | MAXIMUM VALUE (IMP.) | UNITS (IMP.) |
|---|---|---|---|---|---|---|
| Melting Point | 1384 | 1508 | K | 2031.53 | 2254.73 | °F |
| Atomic Volume (average) | 0.0071 | 0.0073 | m3/kmol | 433.268 | 445.473 | in3/kmol |
| Tensile Strength | 267 | 624 | MPa | 38.7251 | 90.5036 | ksi |
| Hardness | 580 | 1650 | MPa | 84.1219 | 239.312 | ksi |
| Density | 8.5 | 8.95 | Mg/m3 | 530.638 | 558.731 | lb/ft3 |
| Energy Content | 140 | 180 | MJ/kg | 15167.4 | 19501 | kcal/lb |
| Maximum Service Temperature | 425 | 480 | K | 305.33 | 404.33 | °F |
| Poisson’s Ratio | 0.34 | 0.35 | 0.34 | 0.35 | ||
| Shear Modulus | 45 | 58 | GPa | 6.5267 | 8.41219 | 106 psi |
| Bulk Modulus | 130 | 170 | GPa | 18.8549 | 24.6564 | 106 psi |
| Compressive Strength | 85 | 550 | MPa | 12.3282 | 79.7708 | ksi |
| Ductility | 0.03 | 0.44 | 0.03 | 0.44 | ||
| Elastic Limit | 85 | 550 | MPa | 12.3282 | 79.7708 | ksi |
| Endurance Limit | 138 | 240 | MPa | 20.0152 | 34.809 | ksi |
| Fracture Toughness | 26 | 79 | MPa.m1/2 | 23.6612 | 71.8937 | ksi.in1/2 |
| Loss Coefficient | 1.5e-005 | 0.00056 | 1.5e-005 | 0.00056 | ||
| Modulus of Rupture | 85 | 550 | MPa | 12.3282 | 79.7708 | ksi |
| Young’s Modulus | 120 | 156 | GPa | 17.4045 | 22.6259 | 106 psi |
| Glass Temperature | K | °F | ||||
| Latent Heat of Fusion | 220 | 240 | kJ/kg | 94.5825 | 103.181 | BTU/lb |
SB 111 C71500 Composition
DIN 86019 2.1972 ( CuNi10Fe1.6Mn)
| Cu% | Ni% | Fe% | Mn% | C% | Pb% | S% | P% | Zn% | other | |
| Rem. | 9.0-11.0 | 1.5-1.8 | 0.5-1.0 | Max. 0.05 | Max. 0.01 | Max. 0.005 | Max. 0.02 | Max 0.05 | _ | |
EEMUA 144 UNS 7060X
| Cu% | Ni% | Fe% | Mn% | C% | Pb% | S% | P% | Zn% | other |
| Balance | 10.0-11.0 | 1.5 – 2.0 | 0.5 – 1.0 | Max 0.05 | Max 0.01 | Max 0.02 | Max 0.02 | Max 0.20 | 0.30 |
ASTM B466 C70600
| Cu% | Ni% | Fe% | Mn% | C% | Pb% | S% | P% | Zn% | other |
| Balance | 9.0 – 11.0 | 1.0 – 1.8 | Max 1.0 | Max 0.05 | Max 0.02 | Max 0.02 | Max 0.02 | Max 0.50 | _ |
Copper Nickel Heat Exchanger Tubes
- High thermal conductivity
- Very easy to joining and sealing
- Corrosion resistance
- Mechanical strength
- Resistance to under harsh and stressful conditions such as fluctuating weather, salty, etc.
Copper Nickel Condenser Tubes
Copper Nickel Alloy Condenser Tubing sizes
| Grade | OD in mm | Wall Thickness (mm) |
| C68700 | 3 – 70 | 0.2 – 5 |
| CuZn20Al2As | 3 – 70 | 0.2 – 5 |
| C44300 | 3 – 70 | 0.2 – 5 |
| CuZn28Sn1As | 3 – 70 | 0.2 – 5 |
| C21000 | 3 – 70 | 0.2 – 5 |
| C23000 | 3 – 70 | 0.2 – 5 |
| C26000 | 3 – 70 | 0.2 – 5 |
| C27400 | 3 – 70 | 0.2 – 5 |
| C28000 | 3 – 70 | 0.2 – 5 |
| C33000 | 3 – 70 | 0.2 – 5 |
| C36000 | 3 – 70 | 0.2 – 5 |
| C37700 | 3 – 70 | 0.2 – 5 |
| C38000 | 3 – 70 | 0.2 – 5 |
| C44300 | 3 – 70 | 0.2 – 5 |
| C46400 | 3 – 70 | 0.2 – 5 |
| C48500 | 3 – 70 | 0.2 – 5 |
| C77000 | 3 – 70 | 0.2 – 5 |
EEMUA Copper Nickel Hydraulic Tube Burst Pressure
(Barlow’s Formula)
P = (2ST÷D) (45,000 PSI Min Tensile Stress)
P = Burst Pressure
S = 45,000 lbs. PSI Tensile Strength
T = Nominal Wall Thickness
D = OD/ Outside Diameter
| 1/4″ x 0.035 – 12,600 | 5/8″ x 0.083 – 11,950 | 1-1/8″ x 0.065 – 5,200 |
| 1/4 x 0.049 – 17,640 | 3/4 x 0.035 – 4,200 | 1-1/8″ x 0.083 – 6,640 |
| 5/16″ x 0.035 – 10,080 | 3/4″ x 0.049 – 5,880 | 1-1/8 x 0.95 – 7,600 |
| 5/16 x 0.049 – 14,110 | 3/4 x 0.065 – 7,800 | 1-1/8 x 0.109 – 8,720 |
| 3/8″ x 0.035 – 8,400 | 3/4″ x 0.083 – 9,960 | 1-1/4″ x 0.065 – 4,680 |
| 3/8 x 0.049 – 11,760 | 3/4 x 0.095 – 11,400 | 1-1/4 x 0.083 – 5,975 |
| 3/8″ x 0.065 – 15,600 | 3/4″ x 0.109 – 13,080 | 1-1/4 x 0.095 – 6,840 |
| 7/16 x 0.035 – 7,200 | 7/8 x 0.049 – 5,040 | 1-1/4″ x 0.109 – 7,848 |
| 7/16″ x 0.049 – 10,080 | 7/8″ x 0.065 – 6,685 | 1-1/4 x 0.120 – 8,640 |
| 7/16 x 0.065 – 13,370 | 7/8 x 0.083 – 8,535 | 1-1/2″ x 0.083 – 4,980 |
| 1/2″ x 0.035 – 6,300 | 7/8″ x 0.095 – 9,770 | 1-1/2 x 0.095 – 5,700 |
| 1/2 x 0.049 – 8,820 | 1″ x 0.049 – 4,410 | 1-1/2″ x 0.109 – 6,540 |
| 1/2″ x 0.065 – 11,700 | 1″ x 0.065 – 5,850 | 1-1/2 x 0.120 – 7,200 |
| 5/8 x 0.035 – 5,040 | 1″ x 0.083 – 7,470 | 2″ x 0.134 – 6,030 |
| 5/8″ x 0.049 – 7,055 | 1″ x 0.095 – 8,550 | 2″ x 0.188 – 8,460 |
| 5/8 x 0.065 – 9,360 |
Note: To compute safe working pressures, above Burst Pressures should be divided by your desired safety factor.
Supply conditions of cupro nickel tube manufacturers
- Minimum quantity: 0.05 Kilogram
- Packing : standard export packing
- Price Term: CIF CFR FOB Ex-Work
- MTC: Yes
- Third party Inspection: Yes
- Return/ Cancel policy: please Contact Oshwin Overseas
Class 200 copper nickel pipe dimensions
| 90/10 | 90/10 70/30 |
70/30 | |||||
|---|---|---|---|---|---|---|---|
| IPS | OD |
CLASS 50 WALL |
CLASS 200 WALL |
CLASS 700 WALL |
CLASS 1650 WALL |
CLASS 3300 WALL |
CLASS 6000 WALL |
| 1/4 OD | 0.250 | 0.035 | 0.035 | 0.058 | |||
| 1/8 | 0.405 | 0.065 | 0.058 | 0.095 | |||
| 1/4 | 0.540 | 0.065 | 0.065 | 0.042 | 0.072 | 0.120 | |
| 3/8 | 0.675 | 0.065 | 0.072 | 0.049 | 0.095 | 0.148 | |
| 1/2 | 0.840 | 0.065 | 0.072 | 0.058 | 0.120 | 0.203 | |
| 3/4 | 1.050 | 0.065 | 0.083 | 0.083 | 0.148 | 0.238 | |
| 1 | 1.315 | 0.065 | 0.095 | 0.095 | 0.180 | 0.300 | |
| 1-1/4 | 1.660 | 0.072 | 0.095 | 0.120 | 0.220 | 0.380 | |
| 1-1/2 | 1.900 | 0.072 | 0.109 | 0.134 | 0.250 | 0.425 | |
| 2 | 2.375 | 0.083 | 0.120 | 0.165 | 0.340 | 0.520 | |
| 2-1/2 | 2.875 | 0.083 | 0.134 | 0.203 | 0.380 | ||
| 3 | 3.500 | 0.095 | 0.165 | 0.250 | 0.457 | ||
| 3-1/2 | 4.000 | 0.095 | 0.180 | 0.284 | |||
| 4 | 4.500 | 0.109 | 0.203 | 0.340 | |||
| 4-1/2 | 5.000 | 0.109 | |||||
| 5 | 5.563 | 0.125 | 0.220 | 0.425 | |||
| 6 | 6.625 | 0.134 | 0.259 | ||||
| 7 | 7.625 | 0.140 | 0.284 | ||||
| 8 | 8.625 | 0.151 | 0.340 | ||||
| 9 | 9.625 | 0.187 | 0.340 | ||||
| 10 | 10.750 | 0.134 | 0.187 | 0.380 | |||
| 12 | 12.750 | 0.156 | 0.250 | 0.454 | |||
| 14 | 14.000 | 0.165 | 0.250 | ||||
| 16 | 16.000 | 0.165 | 0.250 | ||||
| 18 | 18.000 | 0.180 | 0.250 | ||||
| 20 | 20.000 | 0.180 | 0.250 |
One of the oldest manufacturer, suppliers, stockholder, wholesaler, traders, dealer, Source, stock, distributor, importer & exporter, fabricator, and stockist of ASTM B151 Copper Nickel Pipes Tubes.
Copper nickel pipe schedule chart
| 1/8″ IPS(.405″ O.D.) | 3 1/2″ IPS( 4.000″ O.D.) |
|---|---|
| SCH 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/4″ IPS(.540″ O.D.) | 4″ IPS(4.500″ O.D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 3/8″ IPS(.675″ O.D.) | 5″ IPS( 5.563″ O.D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/2″ IPS(.840″ O.D.) | 6″ IPS(6.625″ O.D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 3/4″ IPS(1.050″ O.D.) | 8 ” IPS(8.625″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 1″ IPS:(1.315′ O.D.) | 10″ IPS(10.750″ O.D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 10, 20, 40, 80 (.500), TRUE 80(.500) |
| 1-1/4″ IPS(1.660″ O.D.) | 12″ IPS(12.750″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500) |
| 1-1/2″ IPS(1.900″ O.D.) | 14″ IPS(14.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH10 (.188), SCH40 (.375) |
| 2″ IPS(2.375″ O.D.) | 16″ IPS(16.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH10(.188), SCH40(.375) |
| 2 1/2″ IPS(2.875″ O.D.) | 18″ IPS (18.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH-40 (.375) |
| 3″ IPS( 3.500″ O.D.) | |
| SCH 5, 10, 40, 80, 160, XXH |
Lead time 10-15 days | 80% of output for export
Wisdom Metal Co.,ltd is one of the leading professional steel pipes and pipe fitting suppliers, established in 2017 and charge of the export business. We have more than 30 years’ experience in manufacturing, distributing, processing, and exporting hot rolled and cold drawn seamless, ERW, EFW, HFW, LSAW, DSAW, and SSAW pipes boiler tubes, heat-exchanger tubes, condenser tubes, super-heater tubes, hydraulic honed tubes, mechanical tubes, structural tubes, line pipes, elbows, tees, reducers, and flanges. We mainly export products to Africa, Asia, Europe, Oceania, and North and South America.
Supported by Machines and Equipment
All our products are manufactured with the latest manufacturing techniques with machines and equipment, which are fitted with the highest technology, to provide products in full conformity with international standards.
Meeting Inspection and Approval Certificates
We have passed the Mill Test certificate, C/W certificate (Calibration works certificate) EN 10204 3.1, DIN 50049 3.1, ISO 10474 3.1, NACE MR-0103/NACE MR-0175/ISO 15156, PED-97/23/EC, AD-2000-WO, with 3.2 certificates duly certified and approved by LRS, GL, BV, DNV, ABS, SGS, TUV, RINA, IRS, NORSOK and more.
Customized Service
We provide product customization services such as shot blasting, precision pipe cutting, cut and roll grooving, custom pipe fabrication, pipe threading, pipe beveling, and coating. They are also approved by Third Party inspection agencies like DNV, BV, SGS, Moody, TuV, ABS, LR, GL, PED, RINA, KR, NKK, AIB-VINEOTTE, CEIL, VELOSI, CCSI, and more. We supply for PetroVietnam, WSF, YPFB, AWH, HMC, PTT, EP PetroEcuador, POD, KNPC, and more.
Establishing Friendly Partnership
Our mission is whether our clients are active in the oil and gas, water supply line, or construction, we endeavor to deliver the highest quality products and value-added services to support our clients’ business. We pursue a win-win situation and long-term cooperative relationships with customers, providing specializing service for the old and new customers with better and more economical results.
Shipping Information
| FOB Port | Tianjin | ||||
|---|---|---|---|---|---|
| Weight per Unit | 1500.0 Kilograms | ||||
| HTS Code | 7304.41.90 00 | ||||
| Export Carton Dimensions L/W/H | 11.8 x 1.0 x 0.8 Meters | ||||
| Lead Time | 15-30 days | ||||
|---|---|---|---|---|---|
| Dimensions per Unit | 11.8 x 1.0 x 0.8 Meters | ||||
| Units per Export Carton | 25.0 | ||||
| Export Carton Weight | 1500.0 Kilograms | ||||
