0.23mm Electrolytic Tinplate Coils/Sheet/Strip Food grade Tinplate Steel Tin Coating T1 T2 BA T3 T4 DR8 T5 ETP TFS Tin free steel Metal Tin Coated Tinplate Lacquered Tinplate Plate
Tinplate, also known as electrolytic tinplate, is a cold-rolled thin steel plate with a thin layer of metallic tin on both sides. This combination delivers the robust strength and durability of steel paired with tin’s corrosion resistance, weldability, and gleaming appearance. It is tasteless, non-toxic, lightweight, and easily processed and formed. With the ability to print vivid patterns, tinplate becomes a versatile and attractive material for various industries. Widely applied in food canning, electronics, chemicals, and paints, tinplate’s production process includes a critical passivation step post-tinning to prevent oxidation and yellowing, thus enhancing its sulfur resistance and overall performance.
|
Product Name
|
Tinplate Tin free steel TFS ETP electrolytic tinplate sheet
|
|
Grade
|
MR T1-T2.5 BA CA MR T3-T5 BA CA MR DR7-DR9 BA/CA
|
|
Width
|
700-1050mm or as required
|
|
Thickness
|
0.12mm-0.55 mm or as required
|
|
Standard
|
AiSi, ASTM, bs, DIN, GB, JIS.
|
|
Technique
|
Cold rolled
|
|
Surface Finish
|
Bright/Stone/Silver finish with passivation treatment ，DOS oil
|
|

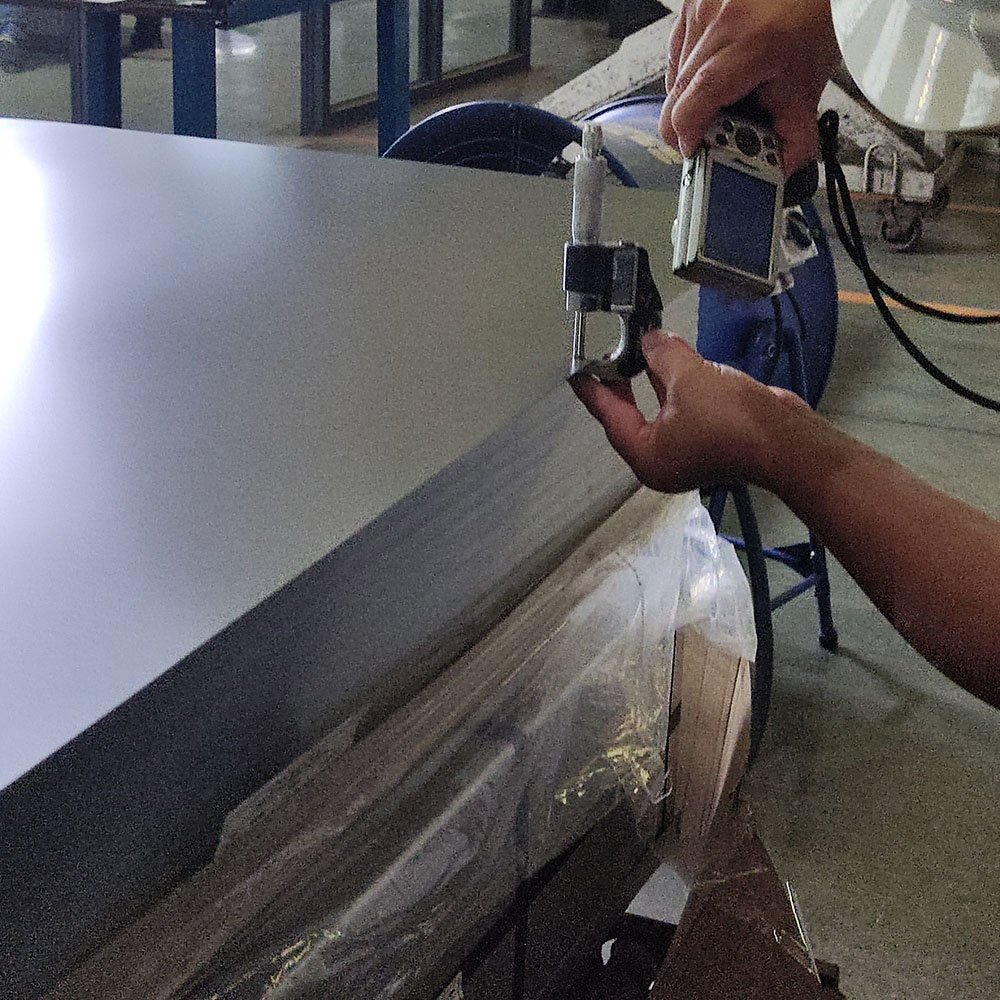

Thickness tolerance
|
±0.01mm
|
|
Temper
|
T1, T2, T3, T4, T5, DR7, DR8, DR9, TH550, TH580, TH620, TH660
|
|
Coatings
|
1.1/1, 2.0/2.0, 2.8/2.8, 2.8/5.6, 5.6/5.6, 8.4/8.4, 11.2/11.2(g/m2), etc or according to customer’s requirement
|
|
MOQ
|
1tons.We also can accept sample order.
|
|
Shipment time
|
Within 15-20 workdays after receiving deposit or L/C
|
|

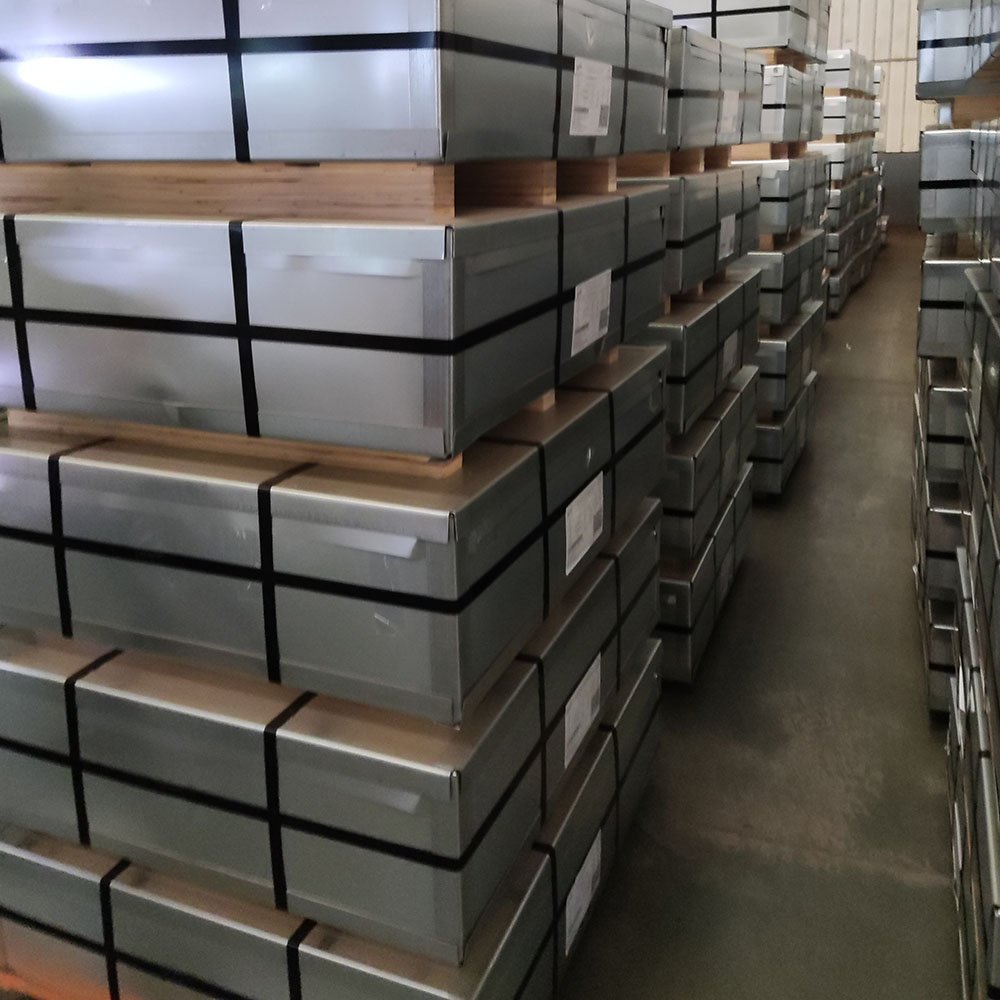

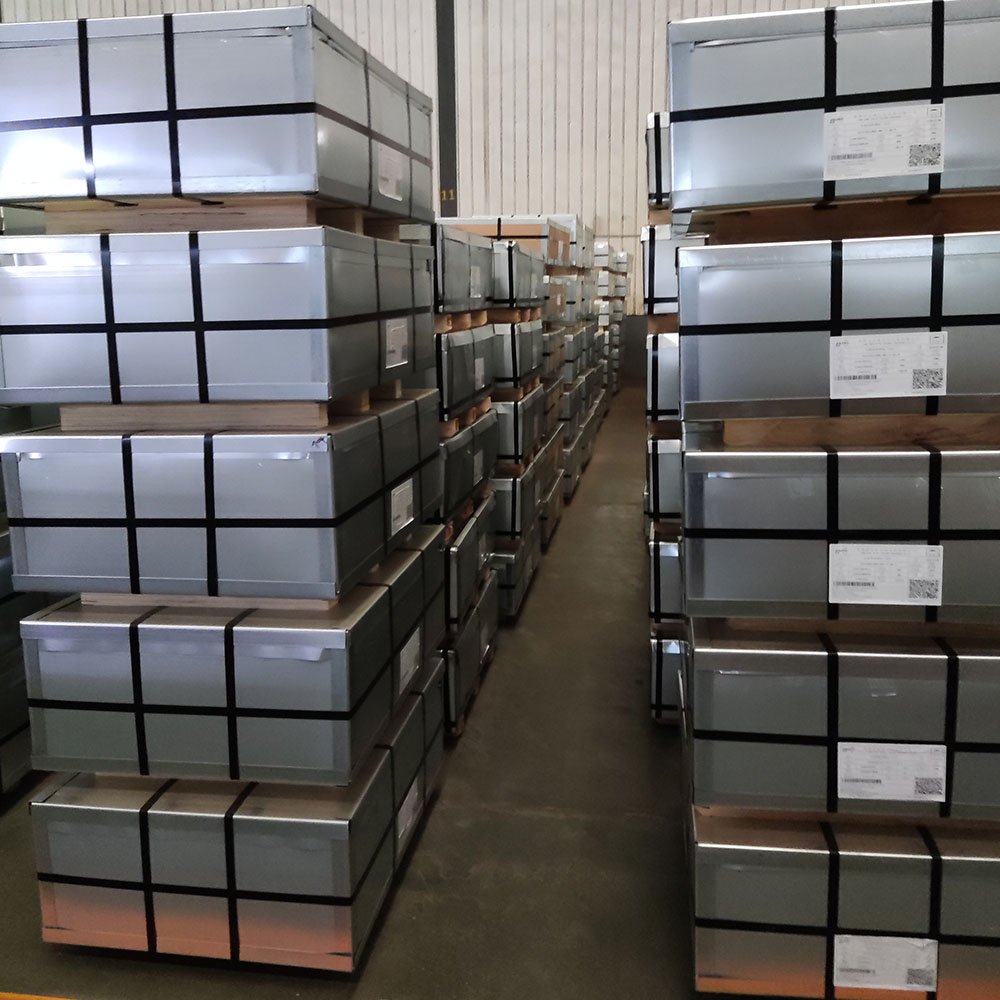

Export packing
|
Waterproof paper, and steel strip packed.
Standard Export Seaworthy Package.Suit for all kinds of transport,or as required |
|
Chromium Range
|
50-150 mg/m2
|
|
coil weight
|
4-8 tons
|
|
sheet weight
|
1-3 tons
|
|
application
|
Food Cans, Industrial Cans, General Line Packaging ,chemical lids , food bottom cover, home applicance panel , crown caps, crown can , Beverage can
|
|
Commodity
|
tinplate sheets and coils
|
|
Thickness(mm)
|
0.135-0.7(tolerance-/+0.01mm)
|
|
Width(mm)
|
strip:24-600mm,coil:600-1200mm(tolerance -0/+3 mm)
|
|
Coating weight
|
1.1/1.1, 2.8/2.8, 5.6/5.6
|
|
Coil ID(mm)
|
508
|
|
Temper(BA&CA)
|
T2-T5; DR8; DR9
|
|
Material
|
MR, SPCC
|
|
Standard
|
JIS G3303, GB/T 2520-2000, ASTM A623, BS EN10202
|
Tinplate sheets, thin sheets of steel coated with tin, are primarily used for packaging, especially in the food and beverage industry. They are also utilized in various other applications due to their strength, corrosion resistance, and formability. Here's a more detailed breakdown of tinplate sheet applications: Packaging: * Food and Beverage Cans: This is the most common use, with tinplate providing a safe and durable barrier for preserving food and beverages. * Aerosol Cans: Tinplate's strength and resistance to corrosion make it suitable for aerosol packaging. * General Line Cans: Used for packaging paints, chemicals, and other products where durability and chemical resistance are needed. Other Applications: * Automotive Parts: Tinplate's strength and corrosion resistance make it suitable for certain automotive parts like fuel tanks and oil pans. * Construction: Tinplate can be used in roofing and cladding due to its durability and weather resistance. * Art and Crafts: Tinplate's attractive appearance makes it a popular choice for various art and craft projects. * Industrial Applications: Tinplate is used in various industrial applications where its properties are beneficial, such as in the production of certain electronic components. * Bakeware: Tinplate is used for baking due to its ability to distribute heat evenly and its non-stick properties.
