ASTM A36 checkered diamond plate carbon steel sheet ,Carbon steel plates are made from an alloy comprised of iron and carbon. Carbon Steel Plate is one of the most commonly used steels in the United States. Alloy steels can contain a variety of elements including chromium, nickel, and vanadium.
What is checkered steel plate?

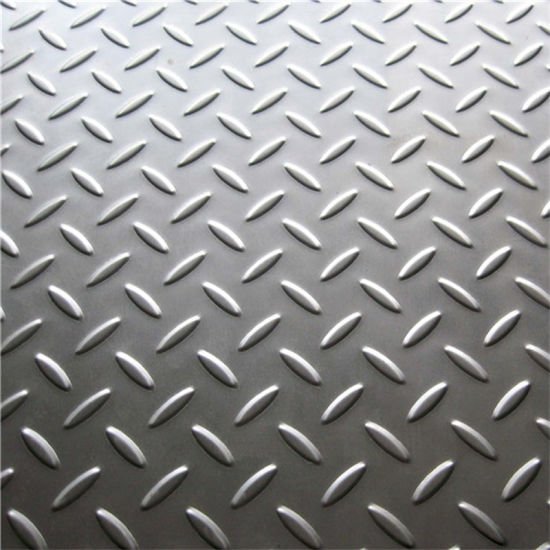

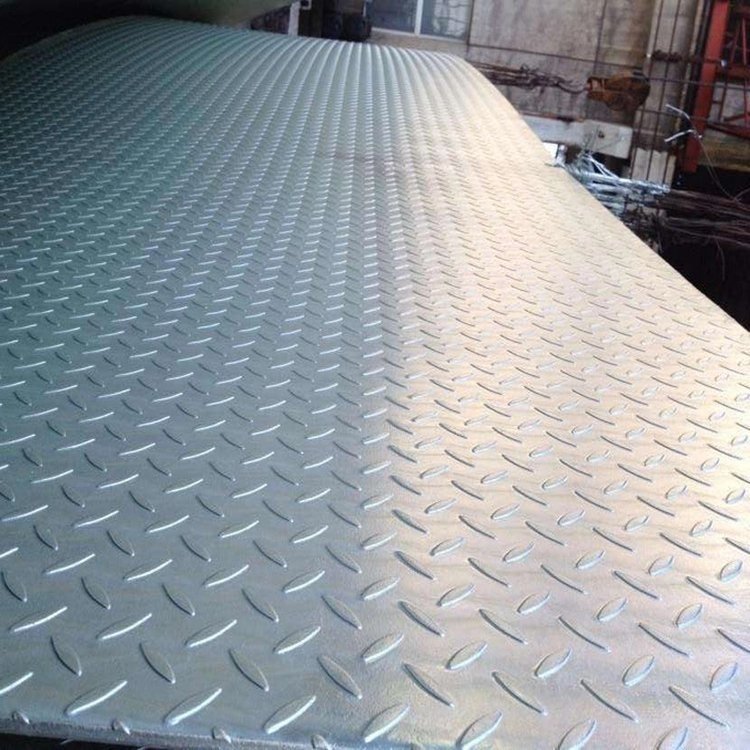

Steel checkered plates are made from a durable, non-slip surface that is suitable for use in areas where slip resistance is required. The plate is characterized by a raised pattern of diamonds or lines, providing improved traction and stability.
Checked Plate Materials
Checked Plate Steel uses a variety of materials for diamond and checkered plate including:
Stainless steel
Mild steel
Aluminum
Our standard checkered plate ranges from 14 gauge to 1 inch thick, 48 inches to 96 inches wide, and lengths up to 25 feet long with custom cut lengths available. By holding all different sizes of aluminum and steel floor plate in stock and ready to go, you can oftentimes get your standard sizes that same day!
We are premier service providers of laser and plasma cutting, leveling and shearing, robotic welding, metal rolling and forming, and metal fabrication. We look forward to becoming a hardworking extension of your team.

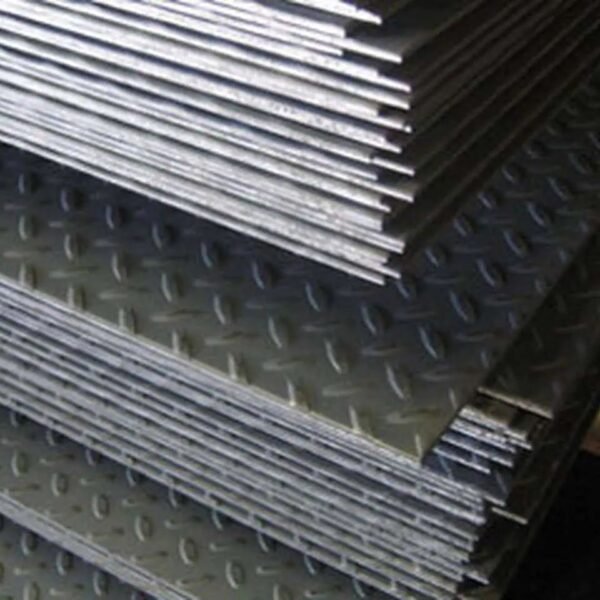

Steel checker plate features ideal skid resistance and is widely used in non-slip places such as stair treads, entryways and truck ramps.
Compared with aluminum diamond plate, steel plate can hold much heavier loads. For expanding its life expectancy, galvanized steel diamond plates are provided.
Steel diamond plate specifications:
Sizes: 1ft × 4ft, 2ft × 2ft, 2ft × 4ft, 4ft × 4ft, 4ft × 8ft, 5ft × 10ft
Thickness: 1.0mm to 5.0mm
Bar pattern: 1-bar, 5-bar and 2-bar
Product Specification and Steel Grade (For Reference)
| Quality | Testing direction | Material-No. | Yield point Rp0,2 (MPa) | Tensile strength Rm (MPA) | Elongation A80 (in %) min. | r-Value 90° min. | n-Value 90° min. | Old Description |
|---|---|---|---|---|---|---|---|---|
| DC01 | Q | 1.0330 | ≤280 | 270 – 410 | 28 | St 12-03 | ||
| DC03 | Q | 1.0347 | ≤240 | 270 – 370 | 34 | 1,30 | St 13-03 | |
| DC04 | Q | 1.0338 | ≤210 | 270 – 350 | 38 | 1,60 | 0,18 | St 14-03 |
| DC05 | Q | 1.0312 | ≤180 | 270 – 330 | 40 | 1,90 | 0,20 | St 15-03 |
| DC06 | Q | 1.0873 | ≤170 | 270 – 330 | 41 | 2,10 | 0,22 | |
| DC07 | Q | 1.0898 | ≤150 | 250 – 310 | 44 | 2,50 | 0,23 |
| Application | JIS | ASTM | SAE |
| Commercial Quality | G3131 SPHC | A569 A635 A659 A1011 CS Type A, B, C |
1006~1025 |
| Drawing Quality | G3131 SPHD | – | 1006-1010 |
| Deep Drawing Quality | G3131 SPHE | A622 A1011 DS Type A, B |
1006~1010 |
| General Structure (T.S. < 490 N/mm2) |
G3101 SS330 SS400 G3106 SM400A G3132 SPHT1 SPHT2 SPHT3 |
A36 A283 GR.C A570 GR.30~40 A1001 SS GR.30~40 |
1010~1025 |
| General Structure (T.S. ≧ 490 N/mm2) |
G3101 SS490 G3106 SM490A SM490A SM490YA G3132 SPH4 |
A570 GR.45~50 A607 GR.45~70 A1011 SS GR.45, 50 A1011 HSLAS GR.45~70 |
J1392 050X |
Available Size
| Thickness (mm) | Mill Edge Width (mm) |
Cut Edge Width (mm) |
Coil Inside Diameter (mm) |
|
| Coil | 1.50~6.50 | 720~1860 | 762 | |
| Coil | 6.51~10.00 | 850~1500 | 762 | |
| Strip | 1.50~6.50 | 30~720 | 762 |
| Thickness (mm) | Mill Edge Width (mm) |
Coil Inside Diameter (mm) |
|
| Plate | 6.00~150 | 500~4000 | 1200~18000 |
| Sheet | 1.50~5.99 | 50~1845 | 760~6100 |
Application
Stairs, walkways, platforms, construction sites, bridges, ramps, play equipment, containers, lifts, shipbuilding, offshore installations, commercial vehicles, cladding and anywhere else that requires a safe, non-slip surface underfoot – or simply an iconic metallic pattern.
Non-slip
- Easy-clean
- Iconic, industrial design
Parameter
| Product | Hot rolled carbon steel plate sheet or coil | Cold rolled carbon steel plate sheet or coil |
| Thickness | 3.0mm-200mm | 0.3mm-6.0mm |
| Standard Width | 1240mm/1500mm/1800mm/2000mm/2200mm | 1000mm/1219mm/1500mm |
| Standard Length | 2438mm/6000mm or as client’s requirement | 2000mm/2439mm/3000mm or as per client’s requirement |
| Standard | ASTM,JIS,SUS,GB,DIN | ASTM,JIS,SUS,GB,DIN |
| Packing | Standard export packing for stainless steel sheet:
1.surface polish, 2: bundle package, 3:wooden case,wooden pallet package, 4:container or bulk, 5:special according to customer’s request |
|
| Application | carbon Steel Sheet are widely used in below fields:
1.Construction field,shipping building industry 2.Petroleum and Chemical Industries 3.Food and Mechanical Industries 4.Boiler Heat Exchange 5.Machinery and Hardware Industries |
|
