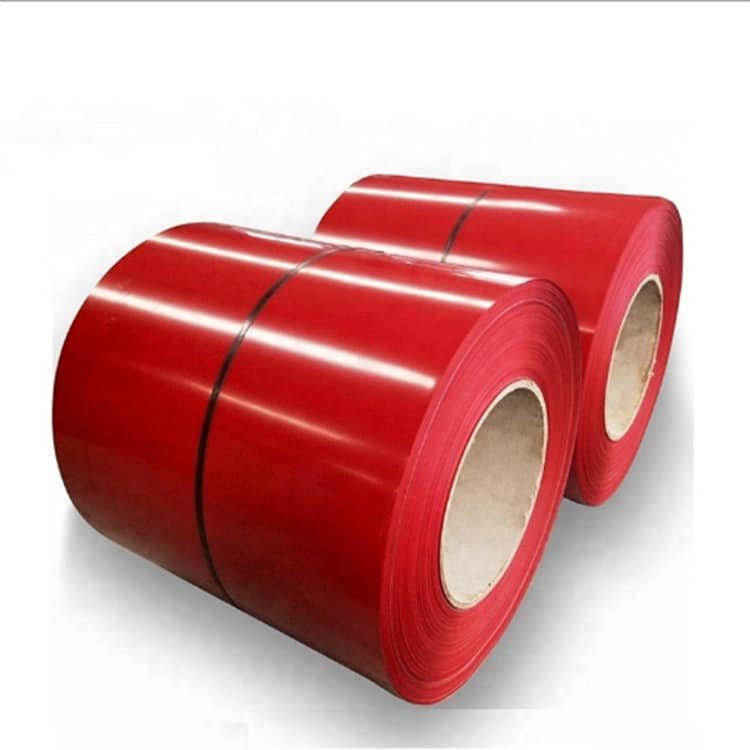

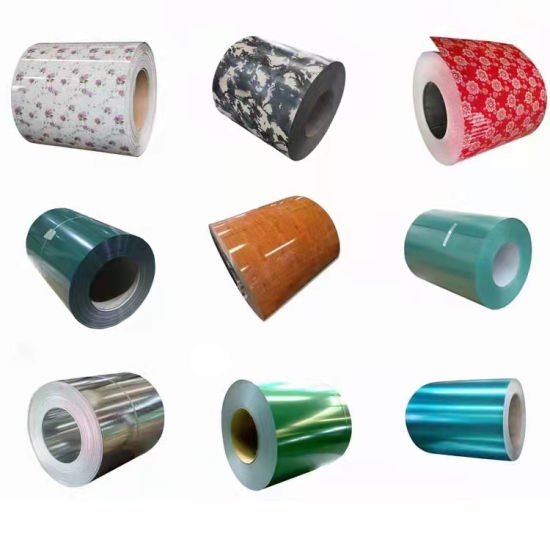

PPGI PPGL Color Coated Steel Coil Galvanized Steel Coil Color Coated Steel Coil Z275/Metal Roofing Sheets Building Materials
Pre-painted galvanized steel combines utility with beauty. It consists of tin, chrome, zinc or paint, which are the extra finish applied to the natural steel surface. The application of coating is to protect the surface of steel from oxidation and it is also used to enhance requirements for visual appearance.
Before we start discussing the difference between the two, it’s important you know what the terms “PPGI” and “PPGL” expand to. PPGI, which refers to Pre-painted galvanized iron steel. While PPGL stands for Pre-painted galvalume steel. Both of these steel variants are also known by the name of color coated steel in the industry.
So, what’s the difference between PPGI Steel Coil and PPGL Steel Coil ? Below we will show you an answer.
The primary difference between the two types of steel coil is in the coating applied to each variant. PPGI or pre-painted galvanized iron steel coil is evenly covered with a layer of zinc. The zinc coating provides anodic protection to the base material, prolonging the product’s service life.
PPGL or pre-painted galvalume steel coil, on the other hand, is coated with a mix of aluminum, zinc and other trace elements. The usual composition of galvalume coating is 55% aluminum, 43.4% zinc and 1.6% trace elements.
Product Specification and Steel Grade (For Reference)
| Product name | Pre-painted galvanized steel coil, PPGI PPGL Steel coil |
| Material | CNS 10804 (2013) , CNS 15298 (2013) , CNS 15299 (2013) , JIS G3312 (2013) CGCC , CGCD1~3 , CGC340 , CGC400 , CGC440 , CGC490 , CGC570 JIS G3318 (2013)CZACC , CZACH,CZACD1 ,CZAC340 ,CZAC400 ,CZAC440 ,CZAC490 ,CZAC570 , JIS G3322 (2013)CGLCC CGLCD CGLC400 ,CGLC440 ,CGLC490 ,CGLC570 , ASTM A755M (2016)AS 2728 (2013) , EN 10169+A1 (2010) |
| Zinc Coating | color coated |
| Thickness | 0.13-0.8 mm |
| Width | 600-1500 mm |
| Coil ID | 508/610mm |
| Coil weight | 3-8 tons |
| Coating Material | PE,SMP,HDP,PVDF |
| Color | All RAL colors or customers sampels color |
| Top Coating Thickness | Primer: PU or Epoxy 5μmTopcoat: 15-20μmBack Primer: PU or Epoxy 2μmBack Coat: PE or Epoxy 5-12μm |
| Back Coating Thickness | Primer: EpoxyTopcoat: PVC PLASTISOL 150- 250μmBack Primer: PU or Epoxy 2μmBack Coat: PVC PLASTISOL 100 – 250μm or Epoxy 7μm |
| Coating Type | 1. Polyester (PE)2. Silicone Modified Polyester (SMP)3. Acrylic4. Polyvinylidene Difluoride (PVDF) |
| Surface Treatment | Protective film can be appliedMetal EmbossedCedar woodStuccoLeather |
| Package | standard export package (Detailed picture is as follows) |
| Hardness | soft (normal), hard, full hard(G300-G550) |
| HS code | 721049 |
| Brand name | Zhuosheng STEEL |
| Country of origin | China |
| Business type | Supplier and manufacturer |
Available Size
| Thickness (mm) | Mill Edge Width (mm) |
Cut Edge Width (mm) |
Coil Inside Diameter (mm) |
|
| Coil | 1.50~6.50 | 720~1860 | 762 | |
| Coil | 6.51~10.00 | 850~1500 | 762 | |
| Strip | 1.50~6.50 | 30~720 | 762 |
| Thickness (mm) | Mill Edge Width (mm) |
Coil Inside Diameter (mm) |
|
| Plate | 6.00~150 | 500~4000 | 1200~18000 |
| Sheet | 1.50~5.99 | 50~1845 | 760~6100 |
| Name | Thickness | Width |
| Pre-painted Hot-dip Galvanized Steel Coil | 0.2~1.5mm | 600~1250mm |
| Pre-painted 5% Al-Zn Coated Steel Coil | 0.2~1.5mm | 600~1250mm |
| Pre-painted 55% Al-Zn Coated Steel Coil | 0.2~1.38mm | 600~1250mm |
Pre-painted Hot-dip Galvanized Steel Coil
Application of PPGI PPGL steel coils :
Pre-painted steel coils are used in roof structure, surface sheet of balcony, frame of window, folding screen and electrical equipment. Pre-painted steel can be formed into almost any shape, and it has excellent resistance to weathering, superior longevity and texture options.
Color coated steel coil/sheet (PPGI & PPGL) is widely used in:
- Building
- Roofing
- Transport
- Home Appliances, such as the side door plate of refrigerators, shell of DVDs, air conditioners and washing machines.
- Solar Energy
- Furniture
PPGI (Pre-Painted Galvanized Iron) steel coils are versatile materials with wide-ranging applications across numerous industries.
They are particularly favored for their corrosion resistance, aesthetic appeal, and ease of processing.
Construction: PPGI coils are extensively used in construction for roofing, wall panels, siding, and structural components like beams and columns. They offer durability, weather resistance, and can be customized in various colors and finishes.
Residential: PPGI is used for roofing, fencing, and decorative elements in residential buildings.
Commercial and Industrial Buildings: Applications include roofing, wall cladding, and interior design elements in commercial and industrial structures.
Agricultural: PPGI coils are utilized in agricultural buildings, such as sheds and greenhouses, due to their resistance to
environmental factors.
Home Appliances: The appliance industry uses PPGI for refrigerators, washing machines, microwave ovens, and other white and brown goods.
Automotive Industry: PPGI can be found in automotive parts, both exterior and interior, due to its strength and formability.
Signage: PPGI is a popular choice for signage and advertising displays due to its ability to be easily shaped and painted with various colors.
Furniture: PPGI coils are also used in furniture manufacturing for tabletops, chair surfaces, and other components.
Other Applications: PPGI coils are also used in:
* Interior design: Wall panels, partitions, and decorative elements.
* Electrical enclosures:
* General everyday products:
* Transportation:
* New energy applications:
* Infrastructure: Guardrails, soundproof panels, etc.
PPGI PPGL steel coil Packing Details
Standard Export Packing:
- 4 eye bands and 4 circumferential bands in steel
- Galvanized metal fluted rings on inner and outer edges
- Galvanized metal and waterproof paper wall protection disk
- Galvanized metal and waterproof paper around circumference and bore protection
About the sea worthy packaging: extra reinforcement before shipment to ensure that the goods are safer and less damaged to customers.
